Funk™ Axles

Funk™ Axles

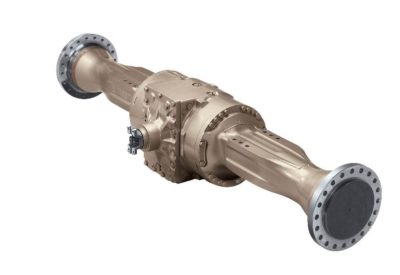

The Funk inboard planetary axles are rated at a peak vertical load (per axle) of up to 88,000 lb. (40,000 kg) These are non-steerable, fixed or oscillating axles that can carry the load!!!

Funk Series 1200 Axle

Peak Vertical Load:    240,000 N (54,000 lb)
Reduction ratios:    4.333:1 – 33.429:1
Peak output torque:    35,000 Nm (310,000 in-lb)

1200 Axle

Funk Series 1400 Axle

Peak Vertical Load:    300,000 N (67,000 lb)
Reduction ratios:    16.208:1 – 32.914:1
Peak output torque:    47,400 Nm (420,000 in-lb)

1400 Axle

Funk Series 1400 Super Wide

Peak Vertical Load:    300,000 N (67,000 lb)
Reduction ratios:    27.927:1 – 30.578:1
Peak output torque:    47,400 Nm (420,000 in-lb)

1400 Super Wide

Funk Series 1600 Axle

Peak Vertical Load:    395,000 N (88,000 lb)
Reduction ratios:    16.208:1 – 29.922:1
Peak output torque:    67,700 Nm (600,000 in-lb)

1600 Axle
