Funk™ Hydrostatic Motor Driven (HMD)

Funk HMD transmissions are equipped to operate with high-tech hydraulics. They provide the electronic controls you need for heavy-duty equipment such as dozing machines, motor graders, railway vehicles, sweepers, pavers, and virtually any other application where a controlled travel speed is critical.

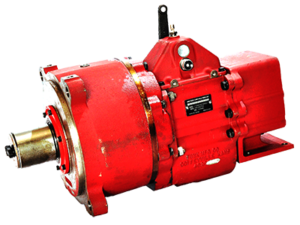

Series HMD 2327

3-and 4-Speed with planetary reduction
Input power (max.):100 SAE hp (75 kW)
Input power (max.): 200 lb/ft (271 Nm)
Input no load speed (max.): 3000 rpm

HMD 2327

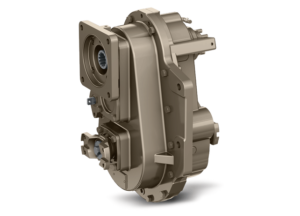

18000 HMD Transmission

2-Speed
Input power (max) 149 kW (200 hp)
Input torque (max) 949 Nm (700 lb-ft)
Input no load speed (max) 4000 rpm

HS 18000

17000 HMD Transmission

2-Speed
Input power (max.): 125 SAE hp (93 kW)
Input power (max.): 750 lb/ft (1017 Nm)
Input no load speed: 2900-4200 rpm

HS 17000

23000 HMD Transmission

3- and 4-Speed
Input power (max.):100 SAE hp (75 kW)
Input power (max.): 200 lb/ft (271 Nm)
Input no load speed (max.): 3000 rpm

HMD 23000

33000 HMD Transmission

4-Speed
Input power (max.):135 SAE hp (101 kW)
Input power (max.): 300 lb/ft (407 Nm)
Input no load speed (max.): 2400 rpm

HMD 33000

12700 HMD Transmission

4-Speed
Input power (max.):140 SAE hp (104 kW)
Input power (max.): 300 lb/ft (407 Nm)
Input no load speed (max.): 2500 rpm

HMD 12700
